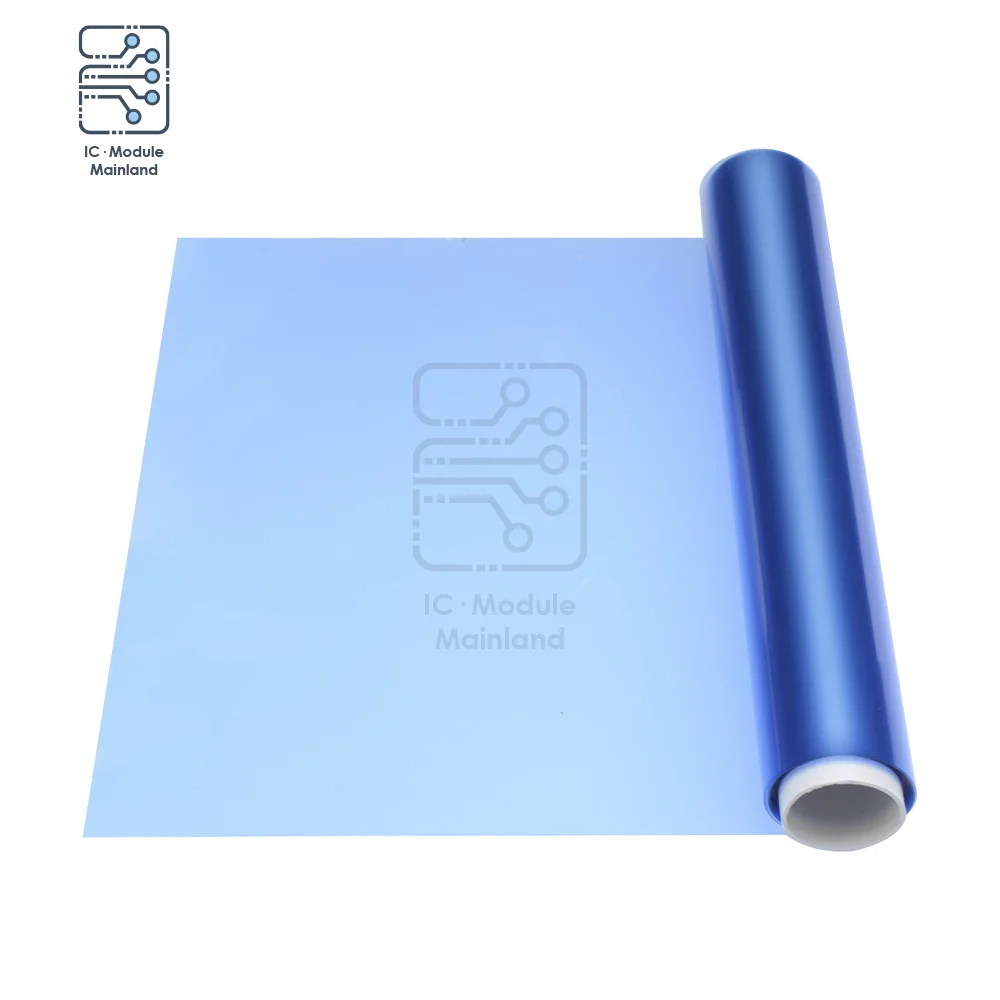

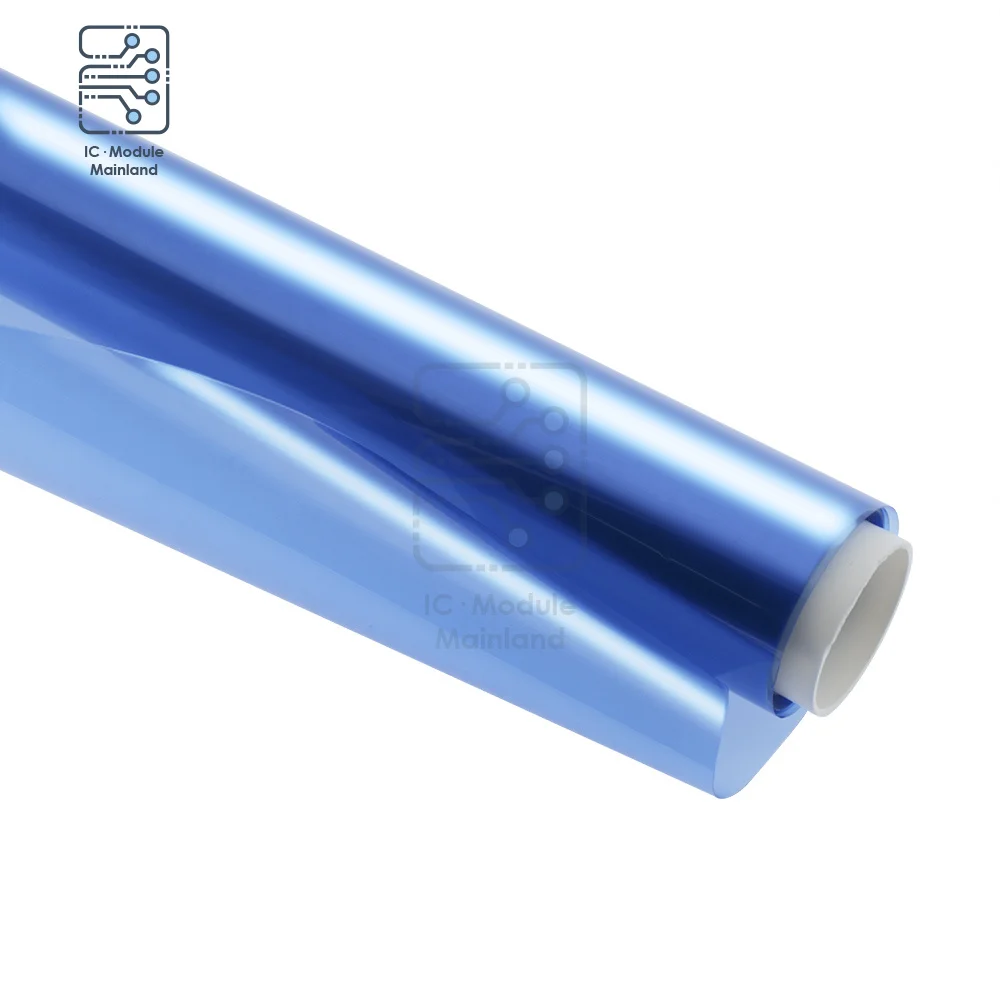

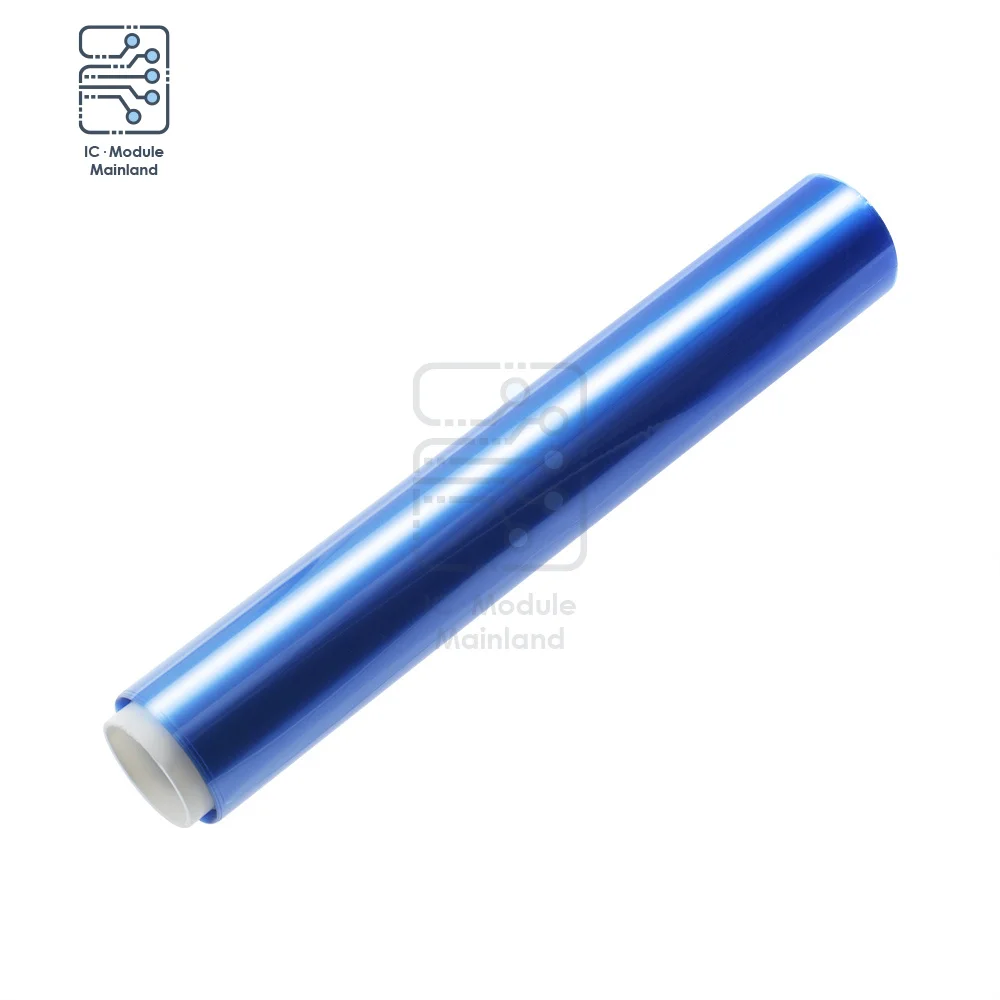

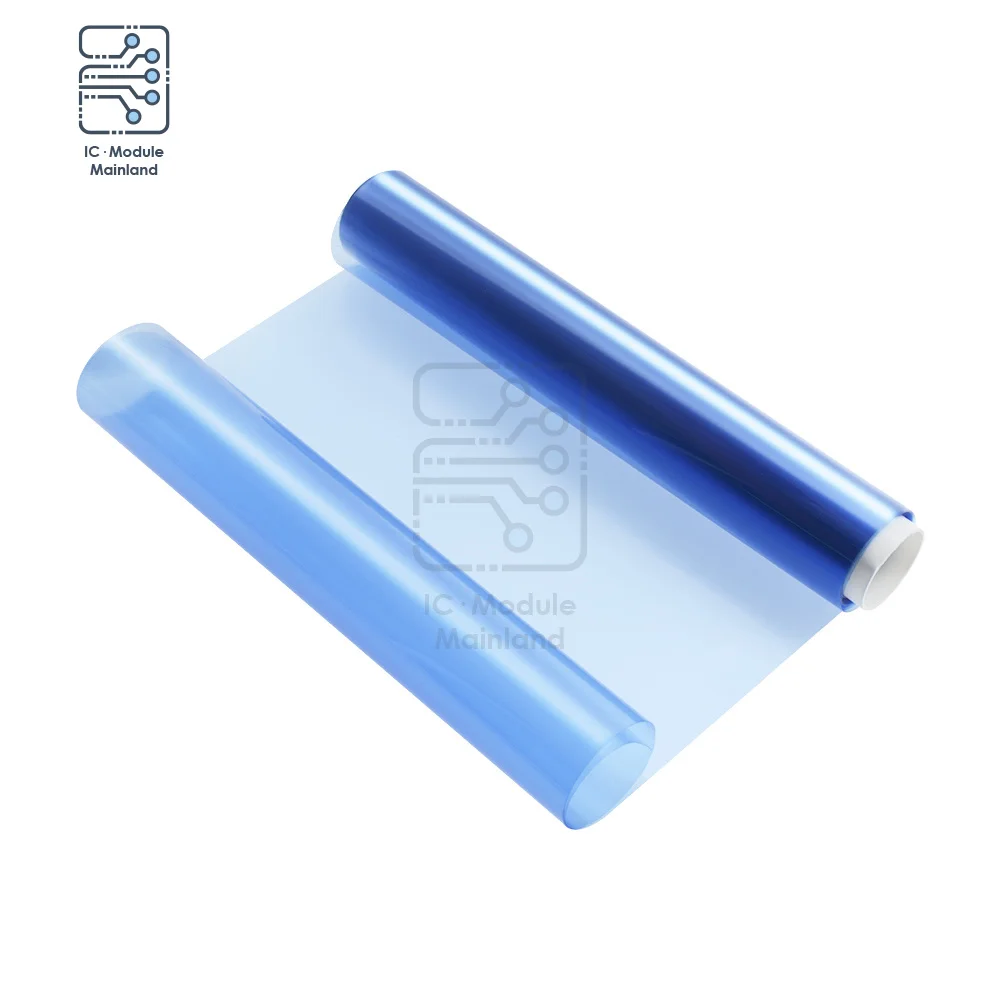

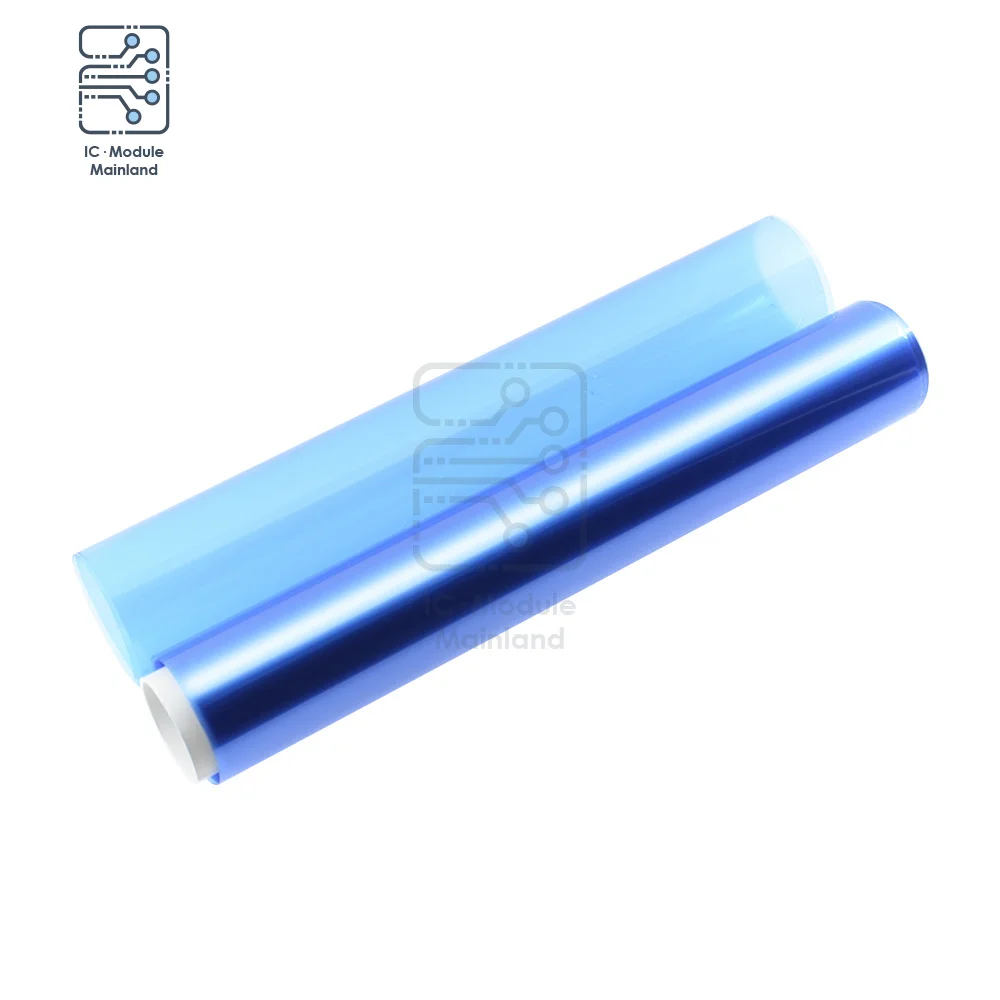

Filme Seco Fotossensível Portátil de 15x200cm para o Furo do Chapeamento da Folha do Photoresist do Circuito Que Cobre a Placa de Gravura do Pwb

15x200CM Portable Photosensitive Dry Film For Circuit Photoresist Sheet Plating Hole Covering Etching PCB Board

Features:
Photographic film, also known as dry film, is used to make PCB board, stick it on top of the PCB, it will become a sensitive circuit board.
Suitable for plating, hole covering,and the etching process.
Excellent ability to cover holes
High Resolution
Excellent adhesion to almost all surfaces
Image clarity after exposure
Front-panel is very clean after developed
Size: 15 x 200 cm / 5.91” x 78.74”
Color: As pictures shown

How to use it :
1. Clean your board. Cut dry film a little larger than your board.
2. Apply Resist: This Photoresist has 3 layers, the top and bottom layers are clear protective layer, so at the first, you need remove one protective layer, the easy way is to use two small pieces of scotch tape. Then apply the middle layer on board.
3. Expose: Place your negative artwork over the rest protective layer.
4. Develop: Remember: you need NEGATIVE film developer, Remove the rest protective layer on the film. After 3 minutes take board out of developer and hold under running water to check,you can always place it back in the developer if needs more time.

Etching
The dry film is resistant to most of the acid etching solution, the PH value can be resistant to most alkaline etching solution between PH8.0 ~8.5.

Cover hole
1.5 mil dry film can fully cover a 0.25 inches thickness hole.

Plating
The dry film is available in most common use of the plating bath, no wrinkles, no color.

Package include
1 x roll photosensitive dry film
