Folhas de Refrigeração Semicondutores 40*40 mm Pcs Tec112706 Tec1-12703 Tec1-12704 Tec1-12705 Tec1-12708 Tec1-12709 12710 12715

R$ 22,39

Adicionado a lista de desejosRemovido da lista de desejos 0
SKU: 1005004997529460

Componentes Ativos

Opção de Compra e tempo de entrega

Aviso Para mais informações sobre esse produto com preço promocionais e forma de entrega, click no botão abaixo e visite o portal da loja

Ficha técnica do produto

Características Especificações
Condição Novo
Tipo Cooling Plate
Origem CN (origem)


1. 1pcs Tec1-12706 Tec1-12703 Tec1-12704 Tec1-12705 Tec1-12708 Tec1-12709

componentes e aparelhos eletrônicos

Special insulation cotton:

2. Componentes Ativos

folhas de semicondutores de refrigeração

3. Circuitos Integrados

12710 12715 Folhas de Refrigeração Semicondutores 40*40mm

4. 1pcs Tec1-12706 Tec1-12703 Tec1-12704 Tec1-12705 Tec1-12708 Tec1-12709

componentes e aparelhos eletrônicos

Chip model: TEC1-12703
Overall size: 40*40*4.0mm±0.1
Component logarithm 127 Conductor specification: Lead length 310mm±5mm RV standard conductor single head 5mm tin plating
Internal resistance: 4.0~4.3O (ambient temperature 23±1?,1kHZ Ac test)
Maximum temperature difference: ?Tmax(Qc=0) above 60?.
Operating current: Imax=12 (rated voltage when starting)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 27W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55? ~ 83? (excessive ambient temperature drop directly affects the refrigeration efficiency)
Packaging process: Standard 704 silicone rubber seal around
Packaging standard: Foam box, storage conditions Ambient temperature -10 ° C to 40 ° C
Storage condition: -40~60?

5. Componentes Ativos

folhas de semicondutores de refrigeração

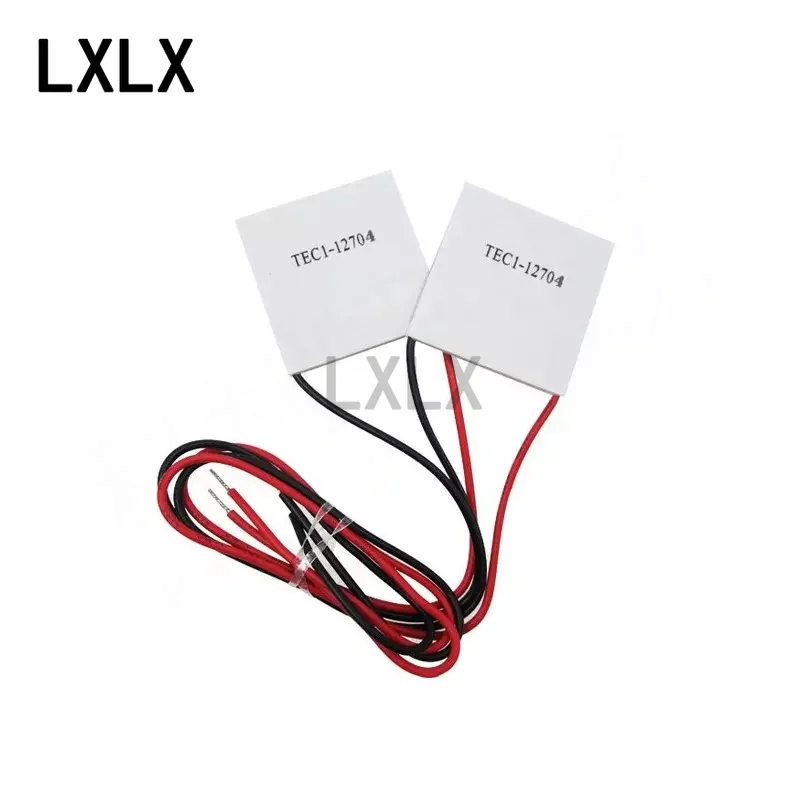

Chip model: TEC1-12704
Overall size: 40*40*4.2mm element logarithm 127
Conductor specification: Lead length 100±5mm RV standard conductor single head 5mm tin plating
Internal resistance: 3.0~3.3O (ambient temperature 23±1?,1kHZ Ac test)
Large temperature difference: ?Tmax(Qc=0) above 60?.
Operating current: Imax=12 (rated voltage when starting)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 36W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55? ~ 83? (high ambient temperature will directly affect the refrigeration efficiency)
Packaging process: Standard 704 silicone rubber seal around
Packaging standard: Foam box, storage conditions Ambient temperature -10 ° C to 40 ° C
Storage condition: -40~60?

6. Circuitos Integrados

12710 12715 Folhas de Refrigeração Semicondutores 40*40mm

Chip model: TEC1-12705
Dimensions: 40*40*3.8mm element logarithm 127
Conductor specification: Lead length 100±5mm RV standard conductor single head 5mm tin plating
Internal resistance: 2.4~2.7O (ambient temperature 23±1?,1kHZ Ac test)
Large temperature difference: ?Tmax(Qc=0) above 61?.
Operating current: Imax=5 (rated voltage when starting)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 45W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55? ~ 83? (high ambient temperature will directly affect the refrigeration efficiency)
Packaging process: Standard 704 silicone rubber seal around
Packaging standard: Foam box, storage conditions Ambient temperature -10 ° C to 40 ° C
Storage condition: -40~60?

7. 1pcs Tec1-12706 Tec1-12703 Tec1-12704 Tec1-12705 Tec1-12708 Tec1-12709

componentes e aparelhos eletrônicos

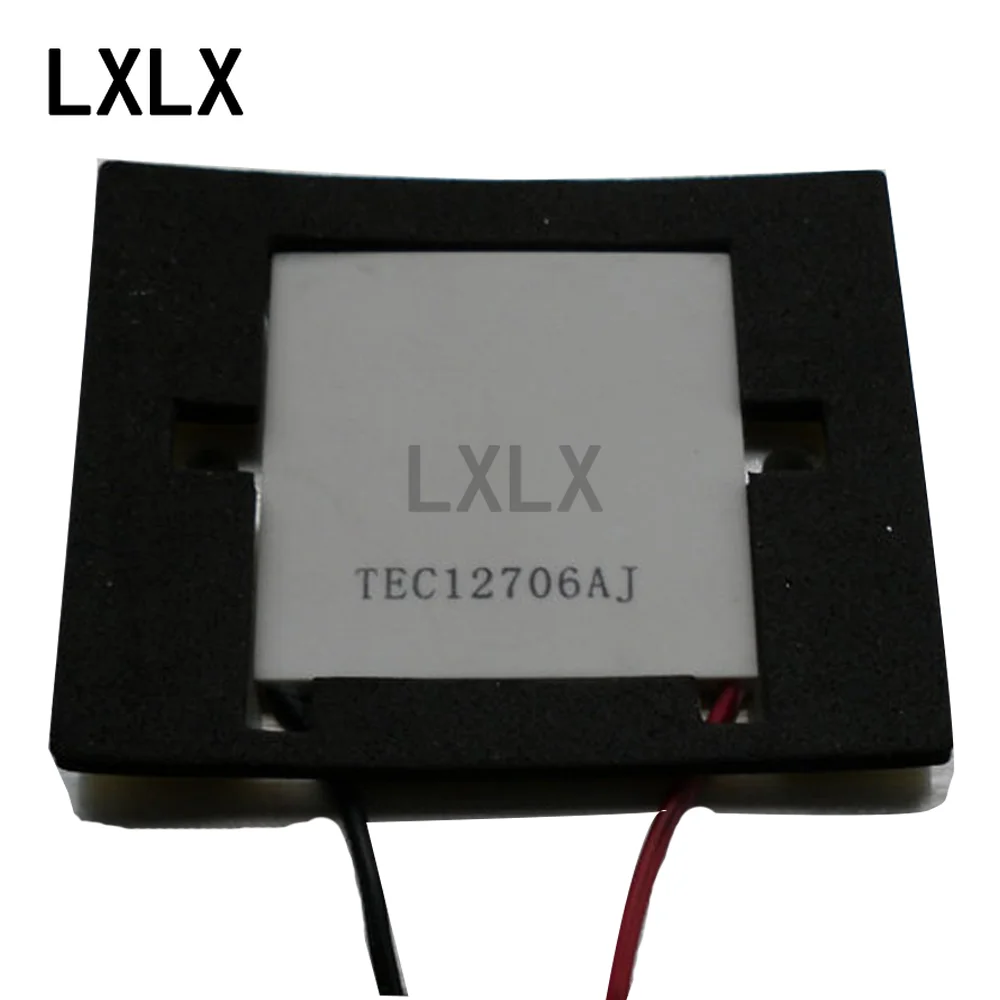

Chip model: TEC1-12706
External size: 40*40*3.75mm
Internal resistance: 2.1~2.4O (ambient temperature 23±1?,1kHZ Ac test)
Large temperature difference: ?Tmax(Qc=0) above 59?.
Operating current: Imax=4.3-4.6A (rated at 12V)
Rated voltage: 12V (Vmax: 15V Starting current 5.8A)
Cooling power: Qcmax 60-72W
Working environment: Temperature range -55? ~ 83? (excessive ambient temperature drop directly affects the refrigeration efficiency)

8. Componentes Ativos

folhas de semicondutores de refrigeração

Chip model: TEC1-12708
Dimensions: 40*40*3.5mm element logarithm 127
Conductor specification: Lead length 300±8mm RV standard conductor single head 5mm tin plating
Internal resistance: 1.5~1.7O (ambient temperature 23±1?,1kHZ Ac test)
Large temperature difference: ?Tmax(Qc=0) above 60?.
Operating current: Imax=8A (rated voltage when starting)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 77W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55? ~ 83? (high ambient temperature will directly affect the refrigeration efficiency)
Packaging process: Standard 704 silicone rubber seal around
Packaging standard: Foam box, storage conditions Ambient temperature -10 ° C to 40 ° C
Storage condition: -40~60?

9. Circuitos Integrados

12710 12715 Folhas de Refrigeração Semicondutores 40*40mm

Chip model: TEC1-12709
Dimensions: 40*40*3.5mm element logarithm 127
Conductor specification: Lead length 300±8mm RV standard conductor single head 5mm tin plating
Internal resistance: 1.5~1.7O (ambient temperature 23±1?,1kHZ Ac test)
Large temperature difference: ?Tmax(Qc=0) above 60?.
Operating current: Imax=8A (rated voltage when starting)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 77W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55? ~ 83? (high ambient temperature will directly affect the refrigeration efficiency)
Packaging process: Standard 704 silicone rubber seal around
Packaging standard: Foam box, storage conditions Ambient temperature -10 ° C to 40 ° C
Storage condition: -40~60?

10. 1pcs Tec1-12706 Tec1-12703 Tec1-12704 Tec1-12705 Tec1-12708 Tec1-12709

componentes e aparelhos eletrônicos

Chip model: TEC1-12710
Dimensions: 40*40*3.4mm element logarithm 127
Conductor specification: Lead length 300±5mm RV standard conductor single head 5mm tin plating
Internal resistance: 1.2~1.5O (ambient temperature 23±1?,1kHZ Ac test)
Large temperature difference: ?Tmax(Qc=0) above 60?.
Operating current: Imax=10A (15Vmax voltage at startup)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 92W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55? ~ 83? (high ambient temperature will directly affect the refrigeration efficiency)
Packaging process: Standard 704 silicone rubber seal around
Packaging standard: Foam box, storage conditions Ambient temperature -10 ° C to 40 ° C
Storage condition: -40~60?

11. Componentes Ativos

folhas de semicondutores de refrigeração

Product model: TEC1-12715
High voltage: 15.4V
High current: 15A
Cooling capacity: 134W
Temperature difference: 65?
Overall size: 40*40*3.3mm
12706 Note: The rated voltage is 12V
Lead length: about 30CM

Points to note:

1, there is a literal cooling surface, no literal cooling surface! Connected to the 12 volt power supply refrigeration sheet on both sides of the temperature difference will appear, one side is cold, the other side is hot, do not in the case of no radiator for the refrigerator for a long time, otherwise it will cause the refrigerator internal overheating and burn.

2, the installation of the radiator must be coated with thermal grease.

12. Circuitos Integrados

12710 12715 Folhas de Refrigeração Semicondutores 40*40mm
